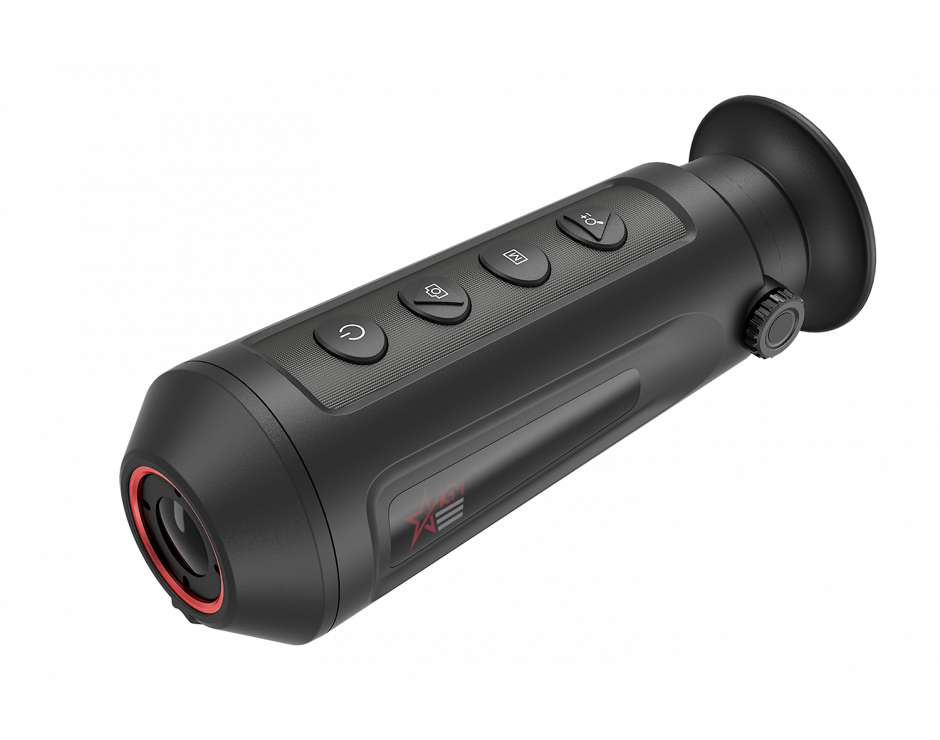

AGM Taipan 384 Thermal Imaging Monocular
The Taipan handheld observational thermal monocular is equipped with a 384x288 infrared detector and 1280x960 LCOS display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
The Taipan 384 thermal imaging monocular with 384 x 288 resolution is available in three models:
- Taipan TM15-384 - Sold Out
- Taipan TM19-384 - Sold Out
- Taipan TM25-384
What's in the box: Taipan thermal monocular, USB cable, lanyard, EU plug, Lens cloth, Operation Manual.
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
- 384x288 resolution, 12µm, high sensitivity detector
- Adaptive AGC, DDE, 30 DNR
- 1280x960 resolution 0.4-inch LCOS display
- Built-in memory supports video recording/snapshot capturing
- Wi-Fi hotspot
- Built-in rechargeable Li-Ion battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Type-C interface
- Limited 5-year warranty
-
Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
-
Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
-
Mode Switch: Device supports pallet switch and distance measurement.
-
Storage: Built-in memory module supports video recording/snapshot capturing.
-
Digital Zoom: Device supports 1x, 2x, 4x and 8x digital zoom.
-
Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
| TM15-384 | TM19-384 | TM25-384 | |
| Image Sensor | VOx Uncooled | VOx Uncooled | VOx Uncooled |
| Sensor Resolution | 384x288 px | 384x288 px | 384x288 px |
| Refresh Rate | 50 Hz | 50 Hz | 50Hz |
| Sensor Pixel Pitch | 12 µm | 12 µm | 12 µm |
| Response Waveband | 8 µm to 14 µm | 8 µm to 14 µm | 8 µm to 14 µm |
| Display Resolution | 1280x960 px LCOS | 1280x960 px LCOS | 1280x960 px LCOS |
| NETD | <35 mK | <35 mK | <35 mK |
| Detection Range | 708 m | 897 m | 1180 m |
| Lens (Focal length) | 15 mm / F1.0 | 19 mm / F1.0 | 25 mm / F1.0 |
| Field of View | 17.5º x 13.1º | 13.8° x 10.4° | 10.5° x 7.9° |
| Magnification | 1.5x | 1.9x | 2.5x |
| Digital zoom | 2x, 4x, 8x | 2x, 4x, 8x | 2x, 4x, 8x |
| FFC (Flat Field Correction) | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual,External Correction |
| Palettes | Black Hot, White Hot, Red Hot & Fusion | Black Hot, White Hot, Red Hot & Fusion | Black Hot, White Hot, Red Hot & Fusion |
| Hot Track | Yes | Yes | Yes |
| Wi-Fi Hotspot | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes |
| Storage | 8 GB | 8 GB | 8 GB |
| Record Video | On-board video recording | On-board video recording | On-board video recording |
| Capture Snapshot | Yes | Yes | Yes |
| CVBS Output | Yes (via USB) | Yes (via USB) | Yes (via USB) |
| Battery | Built-in rechargeable lithium-ion | Built-in rechargeable lithium-ion | Built-in rechargeable lithium-ion |
| Battery life | More than 7.5 hours continuous running (with Wi-Fi hotspot turned off) | More than 7.5 hours continuous running (with Wi-Fi hotspot turned off) | More than 7.5 hours continuous running (with Wi-Fi hotspot turned off) |
| Battery Capacity Display | Yes | Yes | Yes |
| Power | 5V DC / 2 A, 1.5W | 5V DC / 2 A, 1.5W | 5V DC / 2 A, 1.5W |
| Interface | USB Type-C | USB Type-C | USB Type-C |
| Protection Level | IP67 | IP67 | IP67 |
| Working Temperature | -20°/+55°C (-4°/131°F) | -20°/+55°C (-4°/131°F) | -20°/+55°C (-4°/+131°F) |
| Length x width x height (in) | 6.2 x 2.4 x 2.2 | 6.7 x 2.4 x 2.2 | 6.7 x 2.4 x 2.2 |
| Weight | 290 g (0.64 lb) | 310 g (0.68 lb) | 300 (0.69 lb) |
| Neck Strap | No | No | No |
| Carry Case | No | No | No |
| Warranty | Limited 5 years | Limited 5 years | Limited 5 years |
