The IR-PATROL® Thermal Monocular is a multi-function 640x480 military grade monocular that combines a high quality BAE thermal core with advanced miniaturized electronics in a rugged, user friendly housing to bring users a next level thermal detection device. Military, First Responders, and Sportsmen all have a need to see in the dark, but with limited budgets, quality products are typically Out of reach. The new IR-Patrol thermal monocular solves this problem, as Trijicon has developed one of the most affordable, high resolution, thermal night vision devices on the market.
Performance, Durability and Affordability - Whether you are protecting our borders, searching for a lost child, or eradicating groups of feral hogs, operators need high resolution thermal images in a small robust device. The IR-PATROL thermal monocular is the ideal multi-purpose thermal imaging monocular. It's compact, lightweight and rugged; offering some of the most advanced options on the market for a clear, sharp image. Choose from handheld, helmet-mounted or rifle-mounted IR-PATROL systems.
The IR-PATROL features an advanced user interface with a military grade thumb stick that is the perfect size - no more searching for buttons in the dark. With the monocular's ergonomic design, users can take advantage of all the functionality. including the menu system that is engineered to be intuitive and efficient to operate.
Quality, Quality and Quality - The IR-PATROL was designed for military applications at a consumer affordable price point. All the components inside the IR-PATROL are the highest quality. The BAE Systems long wave infrared (LWIR) uncooled, 60Hz thermal core, combined with Emagin's OLED, 10,000:1 contrast VGA display, and our housings are made from 6061 aircraft aluminum. These are the highest quality system components available. All made in the USA,
IR-PATROL Avantages
Superior Image Quality
- 640x480 resolution - 4 times as many pixels as competing 320 systems
- 12 micron pixel pitch - smaller footprint than competing 17 micron systems
-
60 Hz frame rate improved clarity for moving images
Intuitive Controls
- Streamlined miniature thumbstick allows quick navigation of simple system menu enabling quick zeroing and intuitive control
- Manual focus knob allows for optimal image definition, near and far
Rugged, Reliable, American Made
- Designed, constructed and tested to MIL-STD-810G

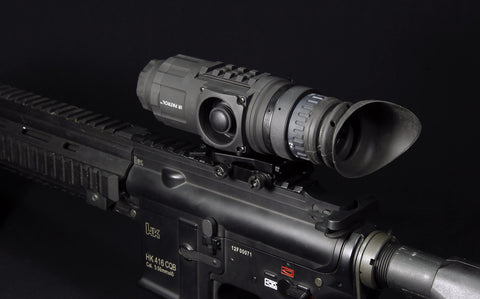

- Versatile mounting interface allows user to use as a handheld, helmet-mounted or rifle-mounted thermal solution
- Made in the USA
IR-PATROL Standard Features
- 640x480, 12 micron, 60 Hz thermal core
- Ruggedized system
- Easy to use miniature thumbstick user interface
- 3 levels each of White Hot / Black Hot polarity modes
- CR123 litium battery with battery life of approx. 2 hrs per battery
- 100% made in USA
- 3 year warranty

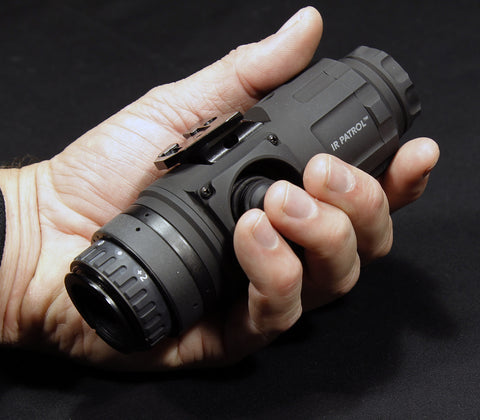

- Handheld or tripod mountable*

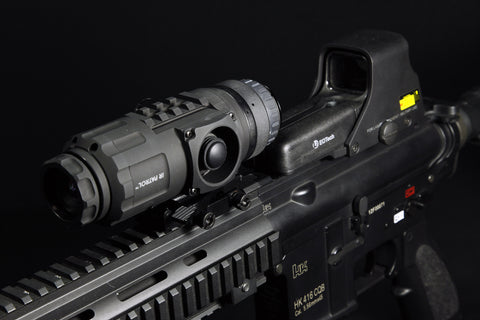

- Weapon mountable*

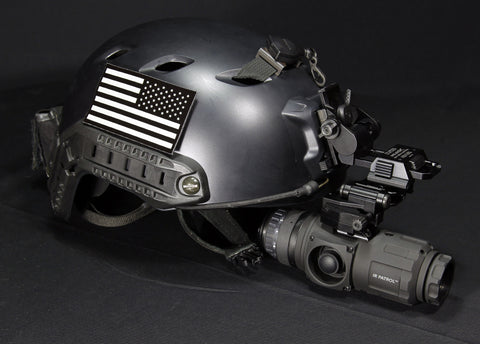

- Helmet mountable*
- Wilcox Shoe Interface*
- Image capture*
* On select models only.
M250XR Specific Features
- Designed for handheld or tripod mounted applications
- 60mm F/1.25 objective lens
- 3X optical magnification, 8X digital zoom with combined zoom up to 24X
- 1/4-20 tripod mount interface
- Edge detect
- Image capture
- Video out
- Download cable
Sensor Type
Uncooled VOx (Vanadium Oxide)
Thermal Sensitivity
<50mk
Sensor Resolution
640 x 480
Sensor Pitch
12um Micron
Frame Rate
60 Hz
Spectral Response
8-12 micron
Display Type
Digital OLED
Display Resolution
640x480 Pixels
Basic Features
E-Zoom, Polarity, DFC
Advanced Features
DCE - Digital Contrast Enhancement
Edge Detection Mode
Start Up Time
>4 Seconds
Video Output
Analog RS-170 (with Optional Cable)
Battery Type
1 each CR123 3 volt
2 each with extender adapter
Battery Life
Approx. 2 hours
Weight
27 oz / 755 grams
Dimensions
8.0" L x 3.3" H x 3.0" W
Diopter
-6 / +2
Eye Relief
27 mm
Environmental
-40c to +55c Operating
-45c to +75c Storage
