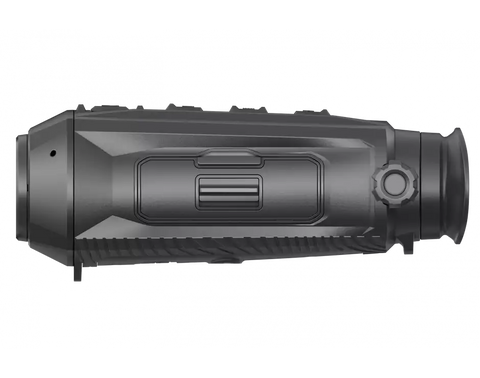

AGM TaipanV2 256 Thermal Imaging Monocular

The New AGM TaipanV2 256 Series is scheduled to be available in April 2025.  Call to reserve your scope.

The AGM TaipanV2 Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world! The TaipanV2 series boasts multiple objective lens sizes which are paired with an industry-leading 256 resolution 12 micron, sub-35mK thermal detector. The Taipan V2 also bring many new advancements to the product family which users have been clamoring for in the original Taipan monoculars. These primary improvements include moving from a nonremovable rechargeable internal battery to a single removable rechargeable 18650 and a new 90 degree tilt sensor which powers off the display to save battery life!

The TaipanV2 also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: F1.0 aperture optics, 50Hz refresh rate, 16GB of built-in memory, Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, USB Type-C port for external power capabilities and 4 color palettes. They also utilize a wider rubber eyepiece ton make viewing the 1280 LCOS display extremely comfortable in the field when viewing for long periods of time in a single session.

The TaipanV2 are built for well-rounded use and would work great for hunting, farming/herd protection, law enforcement, search & rescue, boating, camping and other general outdoors activities. And of course, all TaipanV2 models will come with AGM’s 5 year transferable warranty.

The TaipanV2 thermal imaging monocular with 256x192 resolution is available in two models:

  • TaipanV2 10-256,
  • TaipanV2 15-256.

Package includes:  Thermal Monocular, 18650 Rechargeable Battery, Battery Charger, USB Cable, Power Adapter (US and EU plugs included), Lens Cloth, Wrist Strap, User Manual, Protective Bag.

ITAR Control Statement

This product is subject to the International Traffic in Arms Regulations (ITAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of State, Directorate of Defense Trade in accordance with the ITAR, Title 22, and Code of Federal Regulations Part 120-130. Diversion contrary to U.S. law is prohibited.

  • Upgraded sub-35mK 12 micron thermal detector
  • 256x192 resolution
  • 50 Hz image frame rate
  • Advanced image processing
  • 1280x960 resolution LCOS display
  • Built-in recording with sound
  • 16 GB memory module
  • Wi-Fi hotspot
  • Auto screen off with tilt sensor
  • Replaceable and rechargeable Li-Ion battery
  • Up to 7 hours of battery life
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof
  • Compatible with AGM Connect App
  • 5-year warranty
10-256 15-256
Image Sensor VOx Uncooled VOx Uncooled
Sensor Pixel Pitch 12 µm 12 µm
Sensor Resolution 256x192 256x192
Refresh Rate 50 Hz 50 Hz
Response Waveband 8µm to 14µm 8µm to 14µm
NETD (@25°C, F#=1.0) <35mk  <35mK
Lens (Focal length) 10 mm; F1.0 15 mm; F1.0
Field of View (HxV) 17.5º x 13.1º 11.7° x 8.8°
FOV (HxV) @ 100m 30.8 m x 23 m 20.5 m x 15.4 m
Magnification 1.5x, 3x, 6x, 12x 2x, 4x, 9x, 17.5x
Focus Mode Fixed focus Fixed focus
Min. Focusing Distance 1 m 1.5 m
Detection Range (6' object) 500 m 750 m
Diopter Adjustment -4 to +4 dpt -4 to +4 dpt
Monitor 1280x960, 0.4 inch LCOS 1280x960, 0.4 inch LCOS
FFC (Flat Field Correction) Auto, Semi-Auto, Manual Auto, Semi-Auto, Manual
Palettes Black Hot, White Hot, Red Hot, Fusion Black Hot, White Hot, Red Hot, Fusion
Exit Pupil 6 mm 6 mm
Eye Relief 20 mm 20 mm
Scene Mode General, Compressed General, Compressed
Brightness Adjustment Yes Yes
Tone Adjustment Cold, Warm Cold, Warm
Contrast Adjustment Yes Yes
Wi-Fi Hotspot Yes Yes
Standby Mode Yes Yes
Built-in Storage EMMC 16 GB EMMC 16 GB
Video Recording Yes Yes
Audio Recording Yes Yes
Image Capture Yes Yes
Hot Track Yes Yes
Distance Measurement Yes Yes
Picture-in-Picture Yes Yes
Battery Type One replaceable 18650 rechargeable lithium-ion One replaceable 18650 rechargeable lithium-ion
Battery Life Up to 7 hours continuous running (@25°C, Wi-Fi off) Up to 7 hours continuous running (@25°C, Wi-Fi off)
Power 5V DC/2A, USB Type-C interface. Supports external power supply. 5V DC/2A, USB Type-C interface. Supports external power supply.
Working Temperature ºC (ºF) -30°/+55° (-22°/+131°) -30°/+55° (-22°/+131°)
Protection Level IP67 (Waterproof) IP67 (Waterproof)
Dimensions (in) 6.3 x 2.4 x 2.5 in 6.3 x 2.4 x 2.5 in
Weight  0.27 kg (0.6 lb) 0.28 kg (0.61 lb)
Warranty 5 years 5 years
