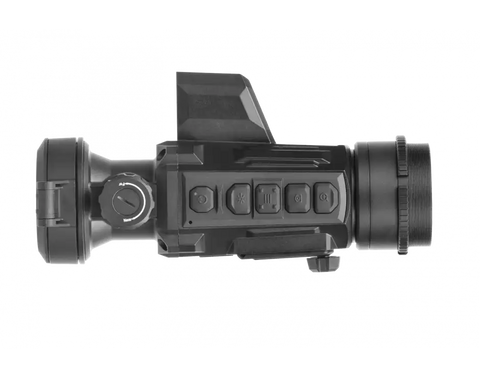

Secutor LRF-C Thermal Imaging Clip-On
The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.
The Secutor LRF-C Clip-On is available in two models:
- Secutor LRF-C 50-640
- Secutor LRF-C 75-640
Package includes: Thermal Imaging Clip-On, Mount, Four CR123A Lithium Batteries, USB Cable, Lens Cloth, User Manual, Soft-sided Carrying Case
- Quick conversion of daytime optics into thermal imaging scope
- 12µm thermal detector
- High sensitivity (NETD less than 20 mK)
- High resolution (1024 x 768) 0.39-inch OLED display
- Fast 50 Hz imaging
- Built-in 1000 m laser rangefinder
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Standby mode
- Uses 4 CR123A Lithium batteries
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- Limited 5-year warranty
| 50-640 | 75-640 | |
| Detector Type | 12µm VOx uncooled | 12µm VOx uncooled |
| Resolution | 640 x 512 | 640 x 512 |
| NETD | < 20 mK | < 20 mK |
| Refresh Rate | 50 Hz | 50 Hz |
| Response Waveband | 8 µm to 14 µm | 8 µm to 14 µm |
| Lens System | 50 mm; F/1.0 | 75 mm; F/1.2 |
| Optical Magnification | 1x | 1x |
| Field of View | 8.8° x 7.0° | 5.9° x 4.7° |
| Detection Range (6' object) | 2600 m | 3800 m |
| Exit Pupil | 22 mm | 22 mm |
| Display | 0.39", OLED, 1024x768 | 0.39", OLED 1024x768 |
| Palettes | 4 - Black Hot, White Hot, Red Hot, Fusion | 4 - Black Hot, White Hot, Red Hot, Fusion |
| Flat Field Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Laser Range Finder | Up to 1000 m, ±4 m accuracy | Up to 1000 m, ±4 m accuracy |
| Laser Wavelength | 905 nm | 905 nm |
| Laser Safety Class | Class 1 | Class 1 |
| Highest Temperature Spot Tracking | Yes | Yes |
| Defective Pixel Correction | Yes | Yes |
| WiFi Hotspot | Yes | Yes |
| Standby Mode | Yes | Yes |
| Burn Protection | Yes | Yes |
| Built-in Storage | 16 GB EMMC | 16 GB EMMC |
| Video/Audio Recording | Yes | Yes |
| Image Capture | Yes | Yes |
| Shot Activated Recording (SAR) | Yes | Yes |
| Battery Type | Four CR123A Replaceable Lithium Battery | Four CR123A Replaceable Lithium Battery |
| Battery Life (WiFi Off) | More than 6 hrs | More than 6 hrs |
| External Power | 5V DC/2A, USB Type-C | 5V DC/2A, USB Type-C |
| Operating Temperature ºC (ºF) | -30/+55 (-22/131) | -30/+55 (-22/131) |
| Protection Level | IP67 | IP67 |
| Max. Recoil | 1000 g/0.4 ms | 1000 g/0.4 ms |
| Overall Dimensions (without mount) | 193 x 104 x 74 mm (7.6 x 4.1 x 2.9 in) | 228 x 111 x 81 mm (9.0 x 4.4 x 3.2 in) |
| Weight (without mount) | 0.63 kg / 1.38 lb | 0.73 kg / 1.6 lb |
| Warranty | Limited 5 years | Limited 5 years |
