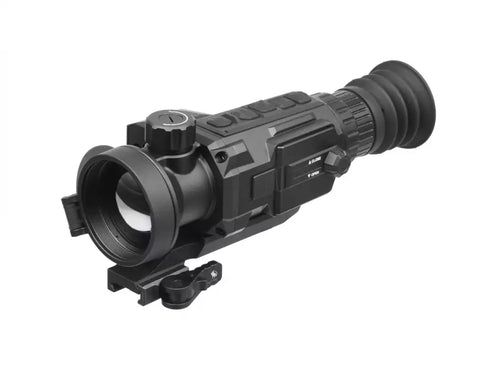

Secutor LRF 640 Thermal Imaging Riflescope with Laser Rangefinder
The Secutor LRF’s were built to expand and diversify the line of rangefinder-equipped thermal riflescopes in the AGM assortment. Though the Secutor LRF series will utilize the same upgraded thermal sensors that can be found across the majority of AGM’s new products, the three primary differences include an upgraded 1000m laser rangefinder, a digital compass and utilization of a CR123A based power system. These differences, while primarily aimed at more noncommercial tactical applications, still offer both extended ranging and battery familiarity to commercial predator hunters as well.
The extended range of the LRF, when paired with the non-proprietary CR123A power system, helps make the Secutor LRF’s a great option for different law enforcement and defense applications. Meanwhile, the integrated compass gives shooters an added layer of situational and positional awareness. The newly introduced sub-20 milikelvin thermal sensors will aid users in these tactical scenarios by increasing their ranging capabilities, as well as increase their ability to both detect and identify targets at longer distances. With both 50 and 75mm options, the Secutor LRF’s provide more authenticity than ever to the phrase: long range.
The Secutor LRF thermal imaging riflescope with 640 x 512 resolution is available in two models:
- Secutor LRF 50-640
- Secutor LRF 75-640
The Secutor LRF is also in 384 x 288 resolution (Secutor LRF 35-384).
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
- 640 x 512 px resolution
- High-sensitivity 12 µm thermal detector, NETD < 20mK
- Fast 50Hz imaging
- Built-in 1,000m laser rangefinder
- 2.5x (50-640) or 4x (75-640) base magnification
- 1x, 2x, 4x, 8x digital zoom
- Adjustable color palettes
- High resolution OLED display
- Various reticle types and colors
- Ballistic calculator
- Picture-in-Picture mode
- On-board video recording and image capture
- Recoil-activated video with sound
- Built-in EMMC storage (16GB)
- Wi-Fi data transmission
- Powered by 4 CR13 batteries
- Standby mode
- Over 6 hour battery life
- External power supply compatibility
- Waterproof & shockproof
- AGM/ADM QR Mount included
- Limited 5-year warranty
Package includes: Thermal Imaging Riflescope, AGM/ADM QR Mount, CR123 Batteries (4), USB Cable, Lens Cloth, Soft Case, User Manual
| 50-640 | 75-640 | |
| Detector Type | 12 µm VOx Uncooled | 12 µm VOx Uncooled |
| Resolution | 640 x 512 px | 640 x 512 px |
| Refresh Rate | Sensor 50 Hz | Sensor 50 Hz |
| Response Waveband | 8 µm to 14 µm | 8 µm to 14 µm |
| NETD (@25°C, F#=1.0) | < 20 mK | < 20 mK |
| Lens (Focal Length) | 50 mm | 75 mm |
| Aperture | F1.0 | F1.2 |
| Field of View | 8.8º x 7.0º | 5.9° x 4.7° |
| Base Magnification | 2.5x | 4x |
| Digital Zoom | 1x, 2x, 4x, 8x | 1x, 2x, 4x, 8x |
| Zoom Range | 2.5x - 20x | 4x - 32x |
| Detection Range (6' object) | 2,600 m/yd | 3,800 m/yd |
| Eye Relief | 45 mm | 45 mm |
| Exit Pupil | 6 mm | 6 mm |
| Diopter Adjustment | -5 to +3 dpt | -5 to +3 dpt |
| Monitor | 1024x768, 0.39-inch, OLED | 1024x768, 0.39-inch, OLED |
| FFC (Flat Field Correction) | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Palettes | Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
| Highest Temperature Spot Tracking | Yes | Yes |
| Reticle | 10 types, 4 colors, on/off | 10 types, 4 colors, on/off |
| Laser Range Finder | Up to 1000 m, +/- 4 m accuracy | Up to 1000 m, +/- 4 m accuracy |
| Min Measuring Distance | 10 m | 10 m |
| Laser Wavelength | 905 nm | 905 nm |
| Laser Safety Class | Class 1 | Class 1 |
| Boresight Adjustment | Digital Controlled | Digital Controlled |
| Boresight Increment | 0.21 mil / 0.73 MOA | 0.15 mil / 0.51 MOA |
| Ballistic Calculator | Yes | Yes |
| WiFi Hotspot | Yes | Yes |
| Sleep Mode | Yes | Yes |
| Picture In Picture Mode | Yes | Yes |
| Burn Prevention | Yes | Yes |
| Built-in Storage | 16 GB EMMC | 16 GB EMMC |
| Video/Audio Recording | Yes | Yes |
| Image Capture | Yes | Yes |
| Shot Activated Recording (VAR) | Yes | Yes |
| Battery Type | Four CR123A lithium batteries | Four CR123A lithium batteries |
| Battery Operating Time (Wi-Fi & LRF off) | Over 6 hours | Over 6 hours |
| Battery Capacity Display | Yes | Yes |
| External Power | 5 VDC/2 A, USB Type-C | 5 VDC/2 A, USB Type-C |
| Operating Temperature ºC (ºF) | -30°/+55° (-22°/+131°) | -30°/+55° (-22°/+131°) |
| Degree of Protection | IP67 | IP67 |
| Max Recoil | 1,000 g / 0.4 ms | 1,000 g / 0.4 ms |
| Overall Dimensions (LxWxH) | 8.9 x 4.1 x 2.9 in | 10.3 x 4.4 x 3.1 in |
| Weight (w/o batteries) | 0.6 kg (1.33 lb) | 0.7 kg (1.55 lb) |
| Warranty | Limited 5 years | Limited 5 years |
