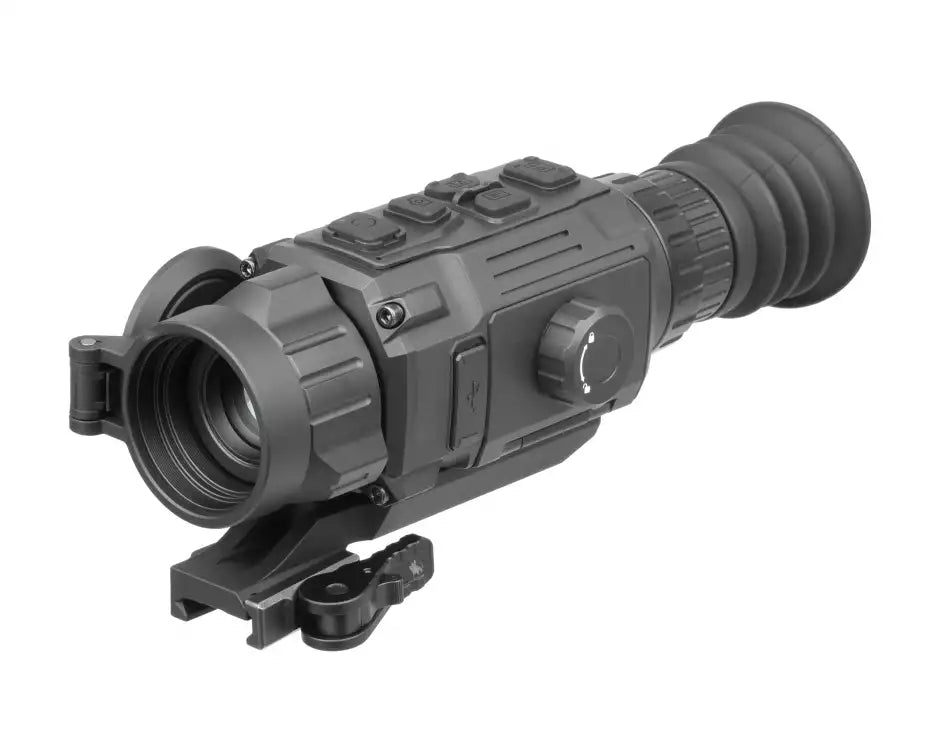

RattlerV2 256 Thermal Imaging Riflescope

The NEW RattlerV2 is one of the most highly-anticipated product releases. Improving on what is already considered the best selling-selling thermal riflescope product family in the United States, the RattlerV2 brings many of the most sought after design improvements into one sleek new housing. These improvements include, but are not limited to: dramatically expanded battery life offered through the unit's proprietary removable and rechargeable battery system, which will afford users up to 11 hours on a single charge (2 included), an expanded built-in reticle assortment, expanded brightness and contrast settings, shot activated recording with sound and new 12-micron thermal sensor that have the highest rated sensitivity rating (sub-20 mk) on the market. For a product family which was already boasted as one of the best value propositions in the market, the NEW RattlerV2's will only expand on that reputation.

The RattlerV2 19-256 with 19mm Germanium lens and RattlerV2 25-256 with 25mm lens are the perfect addition to any hunter's arsenal. Equipped with a 256x192 resolution thermal sensor, these units have 2.5x or 3.5x base magnification, and a detection range at 950 or 1250 yards, respectively. This base magnification, combined with a wide field of view, makes these scopes a truly versatile optic. The device can be used as a thermal riflescope or handheld monocular.

The AGM RattlerV2 thermal imaging riflescope with 256x192 resolution is available in two models:

  • RattlerV2 19-256 with a 19mm objective lens with 2.5x base magnification;
  • RattlerV2 25-256 with a 25mm objective lens with 3.5x base magnification.



The RattlerV2 in 384x288 resolution (RattlerV2 384) is available here.

The RattlerV2 in 640x512 resolution (RattlerV2 640) is available here.



Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.

  • 256x192 thermal resolution with 12 micron sensor
  • High-sensitivity thermal detector
  • Fast 50Hz imaging
  • High resolution 1024 x 768 OLED display
  • 2.5x (V2 19-256) or 3.5x (V2 25-256) optical magnification
  • 1x, 2x, 4x, 8x digital zoom
  • Adjustable color palettes
  • Various reticle types and colors
  • Raised 5-button layout for easy navigation, even with gloves
  • Upgraded lens cap
  • Rechargeable and replaceable battery with up to 11 hours of run time
  • Multiple zeroing profiles various calibers and rifles
  • Custom ADM QD Mount for easy scope removal and reattachment
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • External power supply compatibility
  • Waterproof & shockproof
  • Limited 5-year warranty

Package includes: Thermal Imaging Riflescope, ADM QD Mount, Two Rechargeable Batteries, Battery Charger, USB Cable, Lens Cloth, Carrying Case, User Manual

RattlerV2 19-256 RattlerV2 25-256
Resolution 256 x 192 256 x 192
Detector Type 12µm VOx Uncooled 12µm VOx Uncooled
NETD <35mK (25°C, F# 1.0) <35mK (25°C, F# 1.0)
Refresh Rate 50 Hz 50 Hz
Lens System 19 mm; F/1.0 25 mm; F/1.0
Optical Magnification 2.5x 3.5x
Magnification Range 2.5x - 20x 3.5x - 28x
Digital Zoom 1x, 2x, 4x, 8x 1x, 2x, 4x, 8x
Field of View 9.3º x 6.9º 7.0° x 5.3°
Diopter Adjustment -5 to +5 dpt -5 to +5 dpt
Focus Range 0.5 m to infinity 0.5 m to infinity
Exit Pupil 6 mm 6 mm
Eye Relief 45 mm 45 mm
Detection Range (6' object) 950 m/yd 1,250 m/yd
Display 0.39-inch, OLED, 1024x768 0.39-inch, OLED, 1024x768
Color Palettes Black hot, White hot, Red hot, Fusion Black hot, White hot, Red hot, Fusion
Flat Field Correction Auto, Manual, External Auto, Manual, External
Scene Mode Cold, Warm Cold, Warm
Boresight Adjustment Digital Controlled Digital Controlled
Video/Audio Recording Yes Yes
Image Capture Yes Yes
Standby Mode Yes Yes
Storage Built-in EMMC (16GB) Built-in EMMC (16 GB)
PIP Yes Yes
Defective Pixel Correction Yes Yes
Wi-Fi Hotspot Yes Yes
Hot Track Yes Yes
Reticle 10 types, 4 colors, on/off 10 types, 4 colors, on/off
Distance Measurement Yes (Stadiametric Rangefinder) Yes (Stadiametric Rangefinder)
Shot Activated Recording (SAR) Yes Yes
Battery Type Rechargeable & Replaceable Li-ion battery Rechargeable & Replaceable Li-ion battery
Battery Life (Operating, 20°C) Up to 11.5 hours (with hot spot off) Up to 11.5 hours (with hot spot off)
External Power Supply 5 VDC, 2 A, USB Type-C interface 5 VDC, 2 A, USB Type-C interface
Operating Temperature ºC (ºF) -30°/+55° (-22°/131°) -30°/+55° (-22°/+131°)
Protection Level IP67 IP67
Max Recoil 1000 g/0.4 ms 1000 g/0.4 ms
Dimensions (without mount) 8.5 x 2.7 x 2.6 in 8.7 x 2.7 x 2.6 in
Weight (without mount & battery) 480 g (1.06 lbs) 490 g (1.08 lbs)
Warranty Limited 5 years Limited 5 years
