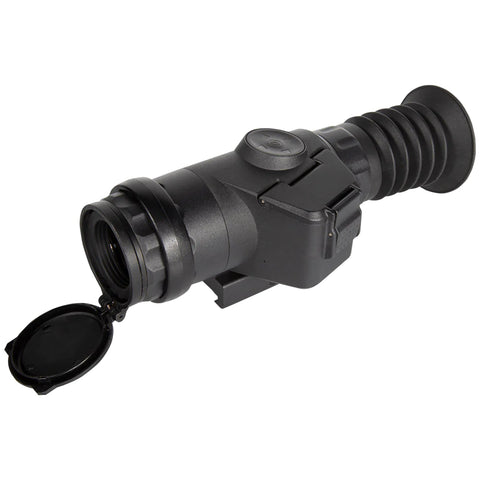

The Wraith 4K Mini Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840x2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280x720 FLCOS screen.
Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (black & white or black-white custom), 850nm IR illuminator and first-focal-plane reticle options, USB-C external power connector, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
Models:
- SM18041
- Magnification: 2-16x32
- Field of View: 40 ft at 100 yds
- SM18042
- Magnification: 4-32x32
- Field of View: 21 ft at 100 yds
Included in Package:
- 850nm IR Illuminator
- Flip-up lens cover
- Eye cup
- Fixed Picatinny mount
- User manual
Wraith 4K Mini Digital NV Riflescope Features
- 4K digital imaging
- 300-yard night detection range
- Night vision mode
- Daytime color mode
- Built-in 4K video recording with audio capabilities
- 8x digital zoom
- Removable invisible IR illuminator for legal IR-restricted states

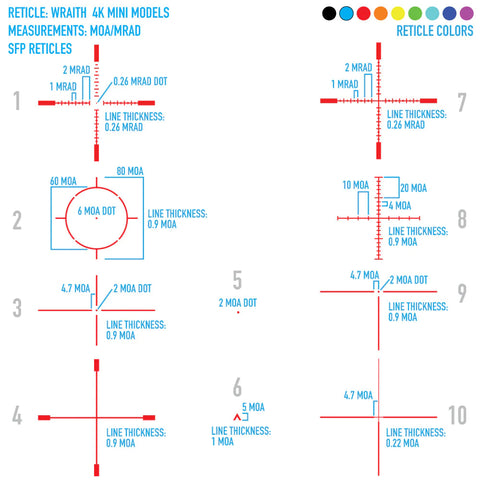

- 14 reticle options with 9 colors
- Power input
| Electronic Components: | |
| Type of sensor | CMOS sensor |
| Sensor resolution, pixels | 4K (3840x2160) |
| Display type | FLCOS |
| Display resolution, pixels | 1280x720 |
| Built-in video recorder availability | Yes |
| Maximum memory card supported | 256 Gb |
| Format of video clip | AVI |
| Resolution of video clip | 1080/4K |
| Format of photo files | JPEG |
| Resolution of photo files | 4K |
| Memory capacity | Approx 1.75 hrs video with 64 GB SD card on 4k@30 quality level |
| Optical Characteristics: | |
| Lens diameter | 32mm |
| Magnification: | |
| Mini 4K 2-16x32 (SM18041) | 2-16x |
| Mini 4K 4-32x32 (SM18042) | 4-32x |
| Field of View, ft @ 100 yds: | |
| Mini 4K 2-16x32 (SM18041) | 40 |
| Mini 4K 4-32x32 (SM18042) | 21 |
| IR-Illuminator: | |
| Emitter | LED |
| IR wavelength, nm | 850nm |
| Equivalent IR power, mW | ~1060 on high, ~540 on medium, ~400 on low |
| Battery life | 2 hours on high |
| Battery type | 2x CR123A |
| Range of Detection: | |
| Night vision detection range, yd/m | 300/274 |
| Power Supply: | |
| Power supply, v | 6 |
| Battery type | 2x CR123A |
| Battery life | 3.6 hrs video mode/ 4.4 hrs preview mode |
| External power supply | 5V via USB-C |
| Reticle: | |
| Windage & elevation click value | 1 pixel/ ~X0.4 MOA |
| Adjustment range, elevation | ~ 150 MOA |
| Adjustment range, windage | ~ 350 MOA |
| Number of reticle options | 10 SFP / 4 FFP |
| Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & Operational Characteristics: | |
| Body material | Aluminum |
| Accessory rail mount | Picatinny |
| Operating temp, °F / °C | 32 to 140 / 0 to 60 |
| Waterproof rating | IPX6 - water resistant |
| Nitrogen purged | No |
| Shockproof | Yes, 3 ft |
| Maximum recoil, caliber | .308 |
| Tube diameter | N/A |
| Dimensions (in) | 6.3 x 3.0 x 2.9 |
| Weight (oz) | 21.6 |
